4.3 SkiplistList: An Efficient Random-Access List

A SkiplistList implements the List interface using a skiplist structure. In a SkiplistList, $ L_0$ contains the elements of the list in the order in which they appear in the list. As in a SkiplistSSet, elements can be added, removed, and accessed in $ O(\log
\ensuremath{\mathtt{n}})$ time.

For this to be possible, we need a way to follow the search path for the $ \mathtt{i}$th element in $ L_0$. The easiest way to do this is to define the notion of the length of an edge in some list, $ L_{\ensuremath{\mathtt{r}}}$. We define the length of every edge in $ L_{0}$ as 1. The length of an edge, $ \mathtt{e}$, in $ L_{\ensuremath{\mathtt{r}}}$, $ \ensuremath{\mathtt{r}}>0$, is defined as the sum of the lengths of the edges below $ \mathtt{e}$ in $ L_{\ensuremath{\mathtt{r}}-1}$. Equivalently, the length of $ \mathtt{e}$ is the number of edges in $ L_0$ below $ \mathtt{e}$. See Figure 4.5 for an example of a skiplist with the lengths of its edges shown. Since the edges of skiplists are stored in arrays, the lengths can be stored the same way:

Figure 4.5: The lengths of the edges in a skiplist.
\includegraphics[width=\textwidth ]{figs/skiplist-lengths}

    class Node {
        T x;
        Node[] next;
        int[] length;
        @SuppressWarnings("unchecked")
        Node(T ix, int h) {
            x = ix;
            next = (Node[])Array.newInstance(Node.class, h+1);
            length = new int[h+1];
        }
        int height() {
            return next.length - 1;
        }
    }

The useful property of this definition of length is that, if we are currently at a node that is at position $ \mathtt{j}$ in $ L_0$ and we follow an edge of length $ \ell$, then we move to a node whose position, in $ L_0$, is $ \ensuremath{\mathtt{j}}+\ell$. In this way, while following a search path, we can keep track of the position, $ \mathtt{j}$, of the current node in $ L_0$. When at a node, $ \mathtt{u}$, in $ L_{\ensuremath{\mathtt{r}}}$, we go right if $ \mathtt{j}$ plus the length of the edge $ \mathtt{u.next[r]}$ is less than $ \mathtt{i}$. Otherwise, we go down into $ L_{\ensuremath{\mathtt{r}}-1}$.

    Node findPred(int i) {
        Node u = sentinel;
        int r = h;
        int j = -1;   // index of the current node in list 0
        while (r >= 0) {
            while (u.next[r] != null && j + u.length[r] < i) {
                j += u.length[r];
                u = u.next[r];
            }
            r--;
        }
        return u;
    }
    T get(int i) {
        if (i < 0 || i > n-1) throw new IndexOutOfBoundsException();
        return findPred(i).next[0].x;
    }
    T set(int i, T x) {
        if (i < 0 || i > n-1) throw new IndexOutOfBoundsException();
        Node u = findPred(i).next[0];
        T y = u.x;
        u.x = x;
        return y;
    }

Since the hardest part of the operations $ \mathtt{get(i)}$ and $ \mathtt{set(i,x)}$ is finding the $ \mathtt{i}$th node in $ L_0$, these operations run in $ O(\log \ensuremath{\mathtt{n}})$ time.

Adding an element to a SkiplistList at a position, $ \mathtt{i}$, is fairly simple. Unlike in a SkiplistSSet, we are sure that a new node will actually be added, so we can do the addition at the same time as we search for the new node's location. We first pick the height, $ \mathtt{k}$, of the newly inserted node, $ \mathtt{w}$, and then follow the search path for $ \mathtt{i}$. Any time the search path moves down from $ L_{\ensuremath{\mathtt{r}}}$ with $ \ensuremath{\mathtt{r}}\le \ensuremath{\mathtt{k}}$, we splice $ \mathtt{w}$ into $ L_{\ensuremath{\mathtt{r}}}$. The only extra care needed is to ensure that the lengths of edges are updated properly. See Figure 4.6.

Figure 4.6: Adding an element to a SkiplistList.
\includegraphics[width=\textwidth ]{figs/skiplist-addix}

Note that, each time the search path goes down at a node, $ \mathtt{u}$, in $ L_{\ensuremath{\mathtt{r}}}$, the length of the edge $ \mathtt{u.next[r]}$ increases by one, since we are adding an element below that edge at position $ \mathtt{i}$. Splicing the node $ \mathtt{w}$ between two nodes, $ \mathtt{u}$ and $ \mathtt{z}$, works as shown in Figure 4.7. While following the search path we are already keeping track of the position, $ \mathtt{j}$, of $ \mathtt{u}$ in $ L_0$. Therefore, we know that the length of the edge from $ \mathtt{u}$ to $ \mathtt{w}$ is $ \ensuremath{\mathtt{i}}-\ensuremath{\mathtt{j}}$. We can also deduce the length of the edge from $ \mathtt{w}$ to $ \mathtt{z}$ from the length, $ \ell$, of the edge from $ \mathtt{u}$ to $ \mathtt{z}$. Therefore, we can splice in $ \mathtt{w}$ and update the lengths of the edges in constant time.

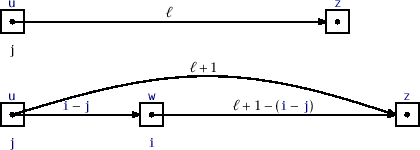

Figure 4.7: Updating the lengths of edges while splicing a node $ \mathtt{w}$ into a skiplist.
\includegraphics[scale=0.90909]{figs/skiplist-lengths-splice}

This sounds more complicated than it is, for the code is actually quite simple:

    void add(int i, T x) {
        if (i < 0 || i > n) throw new IndexOutOfBoundsException();
        Node w = new Node(x, pickHeight());
        if (w.height() > h)
            h = w.height();
        add(i, w);
    }
    Node add(int i, Node w) {
        Node u = sentinel;
        int k = w.height();
        int r = h;
        int j = -1; // index of u
        while (r >= 0) {
            while (u.next[r] != null && j+u.length[r] < i) {
                j += u.length[r];
                u = u.next[r];
            }
            u.length[r]++; // accounts for new node in list 0
            if (r <= k) {
                w.next[r] = u.next[r];
                u.next[r] = w;
                w.length[r] = u.length[r] - (i - j);
                u.length[r] = i - j;
            }
            r--;
        }
        n++;
        return u;
    }

By now, the implementation of the $ \mathtt{remove(i)}$ operation in a SkiplistList should be obvious. We follow the search path for the node at position $ \mathtt{i}$. Each time the search path takes a step down from a node, $ \mathtt{u}$, at level $ \mathtt{r}$ we decrement the length of the edge leaving $ \mathtt{u}$ at that level. We also check if $ \mathtt{u.next[r]}$ is the element of rank $ \mathtt{i}$ and, if so, splice it out of the list at that level. An example is shown in Figure 4.8.

Figure 4.8: Removing an element from a SkiplistList.
\includegraphics[width=\textwidth ]{figs/skiplist-removei}
    T remove(int i) {
        if (i < 0 || i > n-1) throw new IndexOutOfBoundsException();
        T x = null;
        Node u = sentinel;
        int r = h;
        int j = -1; // index of node u
        while (r >= 0) {
            while (u.next[r] != null && j+u.length[r] < i) {
                j += u.length[r];
                u = u.next[r];
            }
            u.length[r]--;  // for the node we are removing
            if (j + u.length[r] + 1 == i && u.next[r] != null) {
                x = u.next[r].x;
                u.length[r] += u.next[r].length[r];
                u.next[r] = u.next[r].next[r];
                if (u == sentinel && u.next[r] == null)
                    h--;
            }
            r--;
        }
        n--;
        return x;
    }

4.3.1 Summary

The following theorem summarizes the performance of the SkiplistList data structure:

Theorem 4..2   A SkiplistList implements the List interface. A SkiplistList supports the operations $ \mathtt{get(i)}$, $ \mathtt{set(i,x)}$, $ \mathtt{add(i,x)}$, and $ \mathtt{remove(i)}$ in $ O(\log \ensuremath{\mathtt{n}})$ expected time per operation.
