9.4 Discussion and Exercises

Red-black trees were first introduced by Guibas and Sedgewick [38]. Despite their high implementation complexity they are found in some of the most commonly used libraries and applications. Most algorithms and data structures textbooks discuss some variant of red-black trees.

Andersson [6] describes a left-leaning version of balanced trees that is similar to red-black trees but has the additional constraint that any node has at most one red child. This implies that these trees simulate 2-3 trees rather than 2-4 trees. They are significantly simpler, though, than the $\mathtt{RedBlackTree}$ structure presented in this chapter.

Sedgewick [64] describes two versions of left-leaning red-black trees. These use recursion along with a simulation of top-down splitting and merging in 2-4 trees. The combination of these two techniques makes for particularly short and elegant code.

A related, and older, data structure is the AVL tree [3]. AVL trees are height-balanced: At each node $u$, the height of the subtree rooted at $\mathtt{u.left}$ and the subtree rooted at $\mathtt{u.right}$ differ by at most one. It follows immediately that, if $F(h)$ is the minimum number of leaves in a tree of height $h$, then $F(h)$ obeys the Fibonacci recurrence

$$F(h) = F(h-1) + F(h-2)$$

with base cases $F(0)=1$ and $F(1)=1$. This means $F(h)$ is approximately $\varphi^h/\sqrt{5}$, where $\varphi=(1+\sqrt{5})/2\approx1.61803399$ is the golden ratio. (More precisely, $\vert\varphi^h/\sqrt{5} - F(h)\vert\le 1/2$.) Arguing as in the proof of Lemma 9.1, this implies

$$h \le \log_\varphi \ensuremath{\mathtt{n}} \approx 1.440420088\log \ensuremath{\mathtt{n}} \enspace ,$$

so AVL trees have smaller height than red-black trees. The height balancing can be maintained during $\mathtt{add(x)}$ and $\mathtt{remove(x)}$ operations by walking back up the path to the root and performing a rebalancing operation at each node $\mathtt{u}$ where the height of $\mathtt{u}$'s left and right subtrees differ by two. See Figure 9.10.

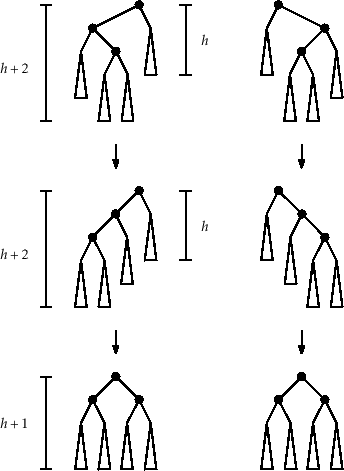

Figure 9.10: Rebalancing in an AVL tree. At most two rotations are required to convert a node whose subtrees have a height of $h$ and $h+2$ into a node whose subtrees each have a height of at most $h+1$.

Andersson's variant of red-black trees, Sedgewick's variant of red-black trees, and AVL trees are all simpler to implement than the $\mathtt{RedBlackTree}$ structure defined here. Unfortunately, none of them can guarantee that the amortized time spent rebalancing is $O(1)$ per update. In particular, there is no analogue of Theorem 9.2 for those structures.

Figure 9.11: A red-black tree on which to practice.

Exercise 9..1   Illustrate the 2-4 tree that corresponds to the $\mathtt{RedBlackTree}$ in Figure 9.11.

Exercise 9..2   Illustrate the addition of 13, then 3.5, then 3.3 on the $\mathtt{RedBlackTree}$ in Figure 9.11.

Exercise 9..3   Illustrate the removal of 11, then 9, then 5 on the $\mathtt{RedBlackTree}$ in Figure 9.11.

Exercise 9..4   Show that, for arbitrarily large values of $\mathtt{n}$, there are red-black trees with $\mathtt{n}$ nodes that have height $2\log \ensuremath{\mathtt{n}}-O(1)$.

Exercise 9..5   Consider the operations $\mathtt{pushBlack(u)}$ and $\mathtt{pullBlack(u)}$. What do these operations do to the underlying 2-4 tree that is being simulated by the red-black tree?

Exercise 9..6   Show that, for arbitrarily large values of $\mathtt{n}$, there exist sequences of $\mathtt{add(x)}$ and $\mathtt{remove(x)}$ operations that lead to red-black trees with $\mathtt{n}$ nodes that have height $2\log \ensuremath{\mathtt{n}}-O(1)$.

Exercise 9..7   Why does the method $\mathtt{remove(x)}$ in the $\mathtt{RedBlackTree}$ implementation perform the assignment $\mathtt{u.parent=w.parent}$? Shouldn't this already be done by the call to $\mathtt{splice(w)}$?

Exercise 9..8   Suppose a 2-4 tree, $T$, has $\ensuremath{\mathtt{n}}_\ell$ leaves and $\ensuremath{\mathtt{n}}_i$ internal nodes.

1. What is the minimum value of $\ensuremath{\mathtt{n}}_i$, as a function of $\ensuremath{\mathtt{n}}_\ell$?
2. What is the maximum value of $\ensuremath{\mathtt{n}}_i$, as a function of $\ensuremath{\mathtt{n}}_\ell$?
3. If $T'$ is a red-black tree that represents $T$, then how many red nodes does $T'$ have?

Exercise 9..9   Suppose you are given a binary search tree with $\mathtt{n}$ nodes and a height of at most $2\log \ensuremath{\mathtt{n}}-2$. Is it always possible to colour the nodes red and black so that the tree satisfies the black-height and no-red-edge properties? If so, can it also be made to satisfy the left-leaning property?

Exercise 9..10   Suppose you have two red-black trees $T_1$ and $T_2$ that have the same black height, $h$, and such that the largest key in $T_1$ is smaller than the smallest key in $T_2$. Show how to merge $T_1$ and $T_2$ into a single red-black tree in $O(h)$ time.

Exercise 9..11   Extend your solution to Exercise 9.10 to the case where the two trees $T_1$ and $T_2$ have different black heights, $h_1\neq h_2$. The running-time should be $O(\max\{h_1,h_2\})$.

Exercise 9..12   Prove that, during an $\mathtt{add(x)}$ operation, an AVL tree must perform at most one rebalancing operation (that involves at most two rotations; see Figure 9.10). Give an example of an AVL tree and a $\mathtt{remove(x)}$ operation on that tree that requires on the order of $\log \ensuremath{\mathtt{n}}$ rebalancing operations.

Exercise 9..13   Implement an $\mathtt{AVLTree}$ class that implements AVL trees as described above. Compare its performance to that of the $\mathtt{RedBlackTree}$ implementation. Which implementation has a faster $\mathtt{find(x)}$ operation?

Exercise 9..14   Design and implement a series of experiments that compare the relative performance of $\mathtt{find(x)}$, $\mathtt{add(x)}$, and $\mathtt{remove(x)}$ for the $\mathtt{SSet}$ implemeentations $\mathtt{SkiplistSSet}$, $\mathtt{ScapegoatTree}$, $\mathtt{Treap}$, and $\mathtt{RedBlackTree}$. Be sure to include multiple test scenarios, including cases where the data is random, already sorted, is removed in random order, is removed in sorted order, and so on.
