14.3 Discussion and Exercises

The external memory model of computation was introduced by Aggarwal and Vitter []. It is sometimes also called the I/O model or the disk access model.

$ B$-Trees are to external memory searching what binary search trees are to internal memory searching. $ B$-trees were introduced by Bayer and McCreight [] in 1970 and, less than ten years later, they were referred to as ubiquitous in the title of Comer's ACM Computing Surveys article [].

Like binary search trees, there are many variants of $ B$-Trees including $ B^+$-trees, $ B^*$-trees, and counted $ B$-trees. $ B$-trees are indeed ubiquitous and are the primary data structure in many file systems, including Apple's HFS+, Microsoft's NTFS, and Linux's Ext4; every major database system; and key-value stores used in cloud computing. Graefe's recent survey [] provides a 200+ page overview of the many modern applications, variants, and optimizations of $ B$-trees.

$ B$-trees implement the $ \mathtt{SSet}$ interface. If only the $ \mathtt{USet}$ interface is needed, then external memory hashing could be used as an alternative to $ B$-trees. External memory hashing schemes do exist; see, for example, Reference []. These schemes implement the $ \mathtt{USet}$ operations in $ O(1)$ expected time in the external memory model. However, for a variety of reasons, many applications still use $ B$-trees even though they only require $ \mathtt{USet}$ operations.

One reason $ B$-trees are such a popular choice is that they often perform better than their $ O(\log_B
\ensuremath{\mathtt{n}})$ running time bounds suggest. The reason for this is that, in external memory settings, the value of $ B$ is typically quite large--in the hundreds or even thousands. This means that 99% or even 99.9% of the data in a $ B$-tree is stored in the leaves. In a database system with a large memory, it may be possible to cache all the internal nodes of a $ B$-tree in RAM, since they only represent 1% or 0.1% of the total data set. When this happens, this means that a search in a $ B$-tree involves a very fast search in RAM, through the internal nodes, followed by a single external memory access to retrieve a leaf.

Exercise 14..1   Show what happens when the keys 1.5 and then 7.5 are added to the $ B$-tree in Figure [*].

Exercise 14..2   Show what happens when the keys 3 and then 4 are removed from the $ B$-tree in Figure [*].

Exercise 14..3   What is the maximum number of internal nodes in a $ B$-tree that stores $ \mathtt{n}$ keys (as a function of $ \mathtt{n}$ and $ B$)?

Exercise 14..4   The introduction to this chapter claims that $ B$-trees only need an internal memory of size $ O(B+\log_B \ensuremath{\mathtt{n}})$. However, the implementation given here actually requires more memory.
  1. Show that the implementation of the $ \mathtt{add(x)}$ and $ \mathtt{remove(x)}$ methods given in this chapter use an internal memory proportional to $ B\log_B \ensuremath{\mathtt{n}}$.
  2. Describe how these methods could be modified to reduce their memory consumption to $ O(B+\log_B \ensuremath{\mathtt{n}})$.

Exercise 14..5   Draw the credits used in the proof of Lemma [*] on the trees in Figures [*] and [*]. Verify that (with 3 additional credits) it is possible to pay for the splits, merges, and borrows and maintain the credit invariant.

Exercise 14..6   Design a modified version of a $ B$-tree in which nodes can have anywhere from $ B$ up to $ 3B$ children (and hence $ B-1$ up to $ 3B-1$ keys). Show that this new version of $ B$-trees performs only $ O(m/B)$ splits, merges, and borrows during a sequence of $ m$ operations. (Hint: For this to work, you will have to be more agressive with merging, sometimes merging two nodes before it is strictly necessary.)

Exercise 14..7   In this exercise, you will design a modified method of splitting and merging in $ B$-trees that asymptotically reduces the number of splits, borrows and merges by considering up to 3 nodes at a time.
  1. Let $ \mathtt{u}$ be an overfull node and let $ \mathtt{v}$ be a sibling immediately to the right of $ \mathtt{u}$. There are two ways to fix the overflow at $ \mathtt{u}$:
    1. $ \mathtt{u}$ can give some of its keys to $ \mathtt{v}$; or
    2. $ \mathtt{u}$ can be split and the keys of $ \mathtt{u}$ and $ \mathtt{v}$ can be evenly distributed among $ \mathtt{u}$, $ \mathtt{v}$, and the newly created node, $ \mathtt{w}$.
    Show that this can always be done in such a way that, after the operation, each of the (at most 3) affected nodes has at least $ B+\alpha B$ keys and at most $ 2B-\alpha B$ keys, for some constant $ \alpha > 0$.
  2. Let $ \mathtt{u}$ be an underfull node and let $ \mathtt{v}$ and $ \mathtt{w}$ be siblings of $ \mathtt{u}$ There are two ways to fix the underflow at $ \mathtt{u}$:
    1. keys can be redistributed among $ \mathtt{u}$, $ \mathtt{v}$, and $ \mathtt{w}$; or
    2. $ \mathtt{u}$, $ \mathtt{v}$, and $ \mathtt{w}$ can be merged into two nodes and the keys of $ \mathtt{u}$, $ \mathtt{v}$, and $ \mathtt{w}$ can be redistributed amongst these nodes.
    Show that this can always be done in such a way that, after the operation, each of the (at most 3) affected nodes has at least $ B+\alpha B$ keys and at most $ 2B-\alpha B$ keys, for some constant $ \alpha > 0$.
  3. Show that, with these modifications, the number of merges, borrows, and splits that occur during $ m$ operations is $ O(m/B)$.

Exercise 14..8   A $ B+$-tree, illustrated in Figure [*] stores every key in a leaf and keeps its leaves stored as a doubly-linked list. As usual, each leaf stores between $ B-1$ and $ 2B-1$ keys. Above this list is a standard $ B$-tree that stores the largest value from each leaf but the last.
  1. Explain how to efficiently implement $ \mathtt{add(x)}$, $ \mathtt{remove(x)}$, and $ \mathtt{find(x)}$ in a $ B+$-tree.
  2. Explain how to efficiently implement the $ \mathtt{findRange(x,y)}$ method, that reports all values greater than $ \mathtt{x}$ and less than or equal to $ \mathtt{y}$, in a $ B+$-tree.
  3. Implement a class, $ \mathtt{BPlusTree}$, that implements $ \mathtt{find(x)}$, $ \mathtt{add(x)}$, $ \mathtt{remove(x)}$, and $ \mathtt{findRange(x,y)}$.
  4. $ B+$-trees duplicate some of the keys because they are stored both in the $ B$-tree and in the list. Explain why this duplication does not add up to much for large values of $ B$.

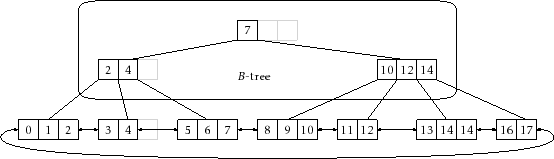

Figure: A $ B+$-tree is a $ B$-tree on top of a doubly-linked list of blocks.
\includegraphics[width=\textwidth ]{figs/bplustree}
